- Place of Origin:Anping , China
- Price Valid Time:10 days
- Export Markets:Europe , America , South Africa , Middle East , Asia , Austrilia and other countries
- HS Code:73144900
- Means of Transport:shipping by sea
- Date of Dispatch:5-20 workdays after get the prepayment
- Applications:fence animals ,breeding animals
- Company certificate:ISO CE
- Quality inspection:ISO9001:2008
- Brand Name:Yize
- Type:woven mesh
- Application:
- Hole Shape:square hole,rectangle hole
- Material:Low carbon steel,Galvanized wire
- Wire Gauge:7/150/813/50
- Wire Diameter:15-50cm
- Mesh:15*10cm
- Packaging Detail:plastic or wooden pallet
Specifications:
* Opening in cm: (Warp) 15-14-13-11-10-8-6; (weft) 15-18-20-40-50-60-65;
* Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m;
* Length: 115 inch (50m) or 330 inch (100m);
* Sizes of mesh opening, roll height and length can be customized.

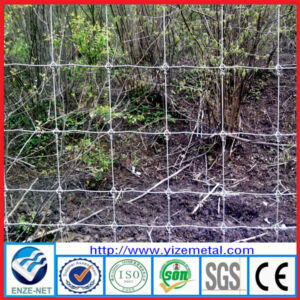

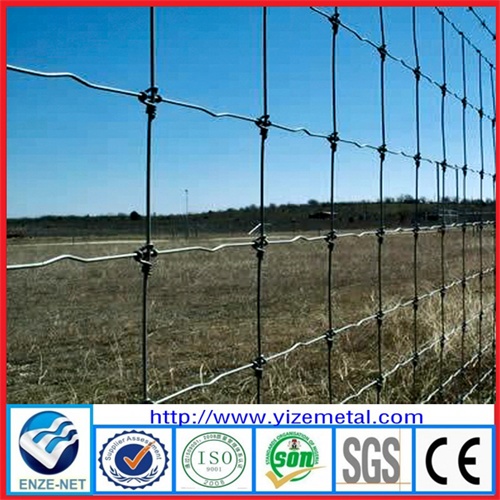

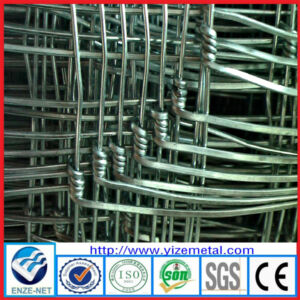

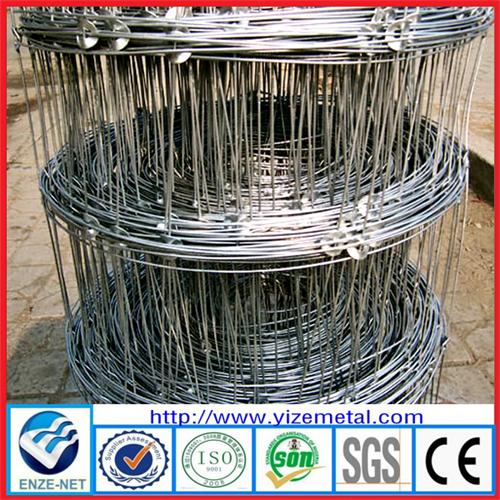

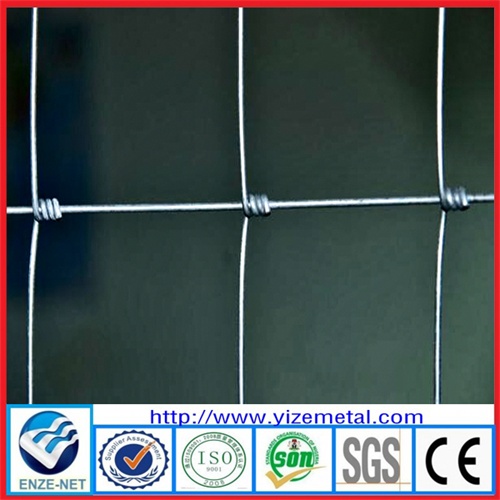

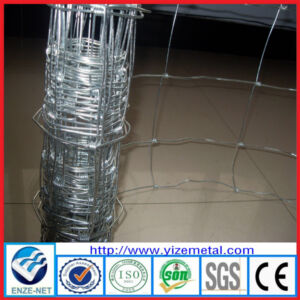

Grassland Fence features:
* Grassland Fence net with high strength galvanized steel wire braiding, high strength tensile big, can withstand cattle, horses, sheep and other livestock violently shaken, safe and reliable.
* Steel wire, galvanized surface wave ring, the other parts are taking anti-rust anti-corrosion measures, can adapt to harsh working conditions, life expectancy of up to 20 years.
* Wwoven network parallel to rolling wave of technology, increased flexibility and cushioning function, can be adapted to the deformation of thermal expansion and contraction, so that a chain link fence has always been to keep up tight condition.
* Simple structure, easy maintenance, short construction period, small size, light weight, easy to transport, installation, ventilation and light transmission does not affect the landscape.
NO. | Specification of prairie fence | Weight | Bottom | Dia. | |
Type | Specification( Unit: mm) | ( kg) | (mm) | (mm) | |
1 | 7/150/813/50 | 102+114+127+140+152+178 | 20.8 | 2.5 | 2 |
2 | 8/150/813/50 | 89(75)+89+102+114+127+140+178 | 21.6 | 2.5 | 2 |
3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 22.6 | 2.5 | 2 |
4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 23.6 | 2.5 | 2 |
5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.9 | 2.5 | 2 |
6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 26.0 | 2.5 | 2 |
7 | 9/150/1245/50 | 102+114+127+140+140+152+178+203+229 | 27.3 | 2.5 | 2 |
8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 |
9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 |
10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 19.3 | 2.5 | 2 |
